What Happens at a Digital Templating Visit

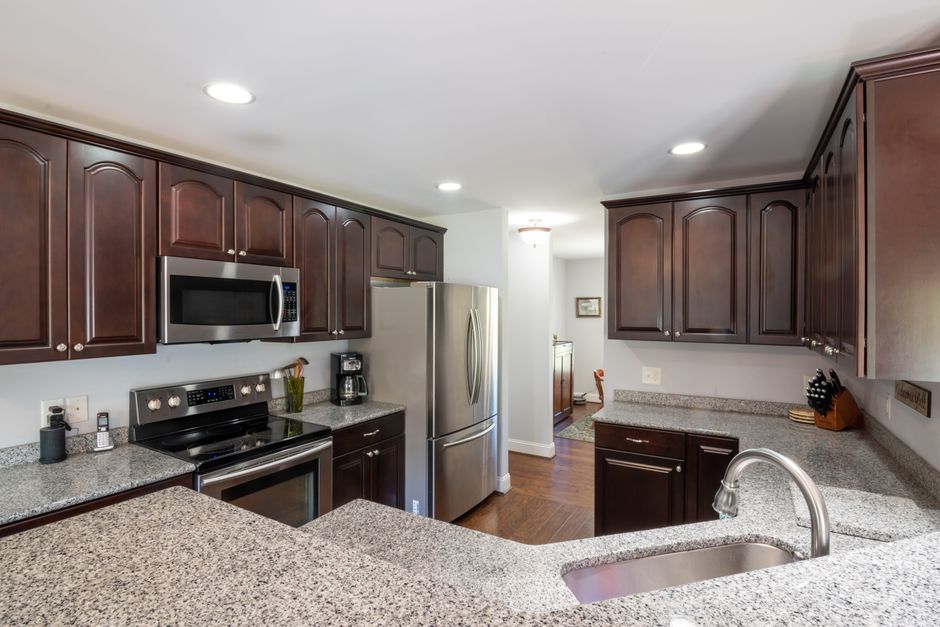

Elegant kitchen featuring dark wooden cabinets, granite countertops, and stainless steel appliances in a contemporary setting.

Homeowners expect a tape measure and a notepad. What shows up is a laser, a tablet and a few minutes of very quiet work. A digital template for a custom countertop in Temecula, CA is captured on site, and the checklist sitting on custom countertop installation temecula utah baby watch lists the visit in the order it happens, cabinets first and cutouts last.

What the tech actually does

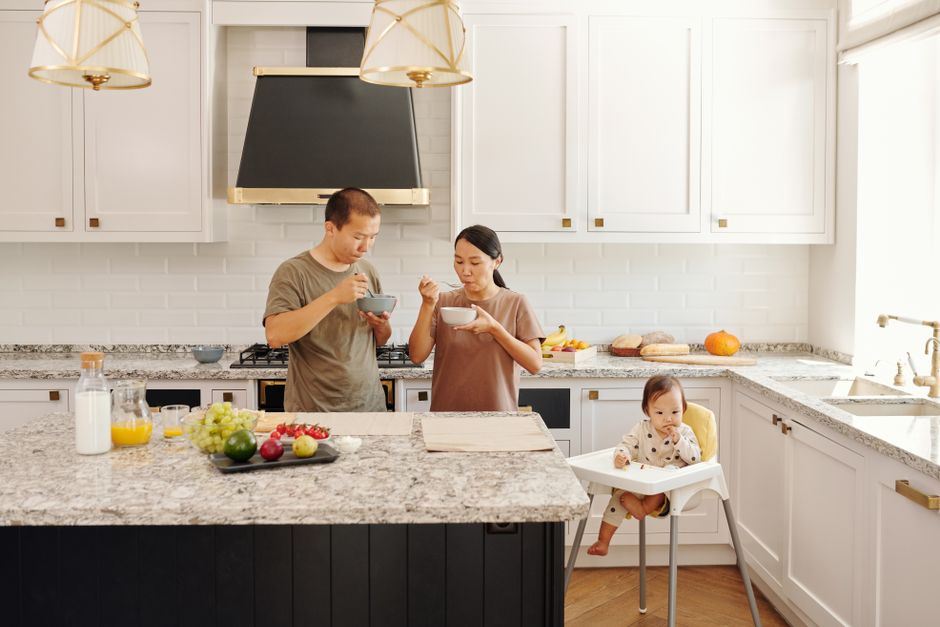

Bright kitchen with granite countertops and wooden cabinets.

The tech shoots the cabinet tops with a laser, marks every corner and wall point on the tablet, and builds a drawing of the run. Where a wall bows or a corner is out of square, the drawing records the real shape instead of a tidy rectangle. That drawing goes to the shop, where it drives the saw. A digital template replaces the old strips of wood that were glued together and carried back to the shop.

Cabinets must be fixed and level

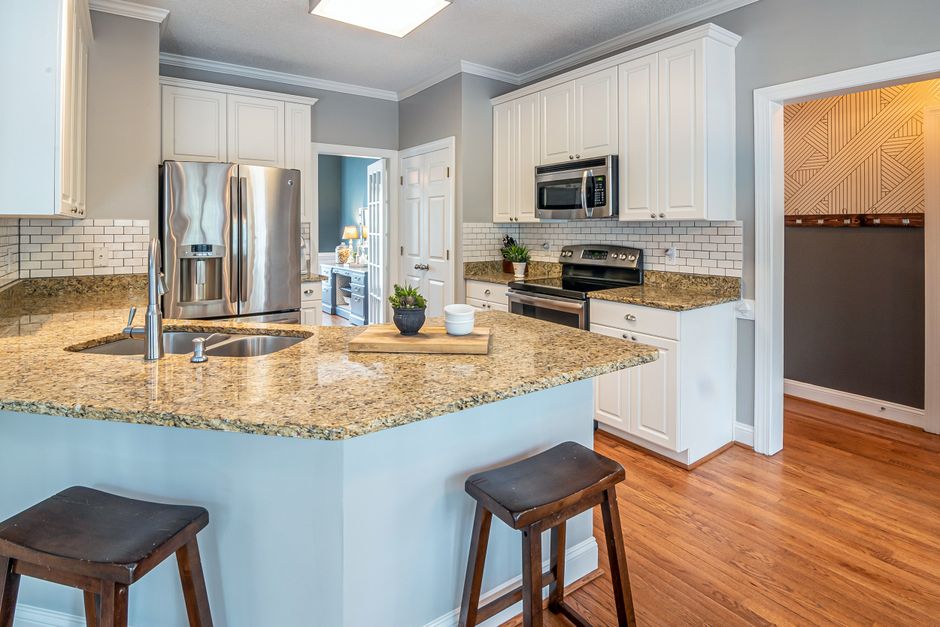

A bright modern kitchen with granite countertops and stainless steel appliances.

Templating is only as honest as the boxes underneath. Base cabinets need to be screwed to the wall and to each other, with toe kicks and face frames final. A box that shifts after the visit changes the fit by a quarter inch, and a granite or quartz slab does not forgive a quarter inch. Shim the low spots before the visit, not after the top is cut.

Choose the sink and cooktop first

A sink cutout cannot be drawn without the sink in hand. An undermount sink needs its spec sheet or the bowl itself on site, because the reveal around the opening depends on the exact rim. The same goes for a slide-in range and a cooktop, which each need a cutout sized to the unit. Faucet holes are marked at the visit too, so the faucet should be bought before the tech arrives.

Walls, backsplash and overhang

Older homes near Murrieta Creek and across Riverside County often carry walls that lean or bow a little, and the template keeps that variation. The tech also records the overhang, how far the top hangs past the cabinet face, along with any support brackets needed for a seating ledge. A deep overhang on stone usually needs brackets or a corbel underneath.

Layout of seams and edges

Seam placement is decided from the drawing and the slab size, so ask where the joints will fall before the template is released. The tech will also confirm the edge profile, whether an eased edge, a bullnose or something squared, because the profile changes the finished dimensions.

After the visit

Once the drawing is approved, the slab is laid out on the shop table, often chosen at a slab yard after a walk past the actual stone. Do not demo or move cabinets once the template is taken. Fabrication takes several days, and the install date depends on the shop queue. Clear the path from the driveway to the kitchen before the finished pieces arrive.
